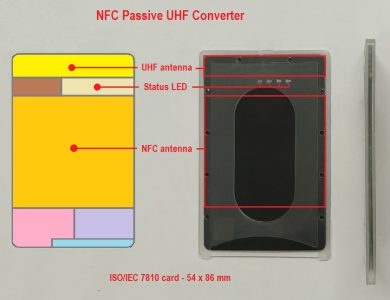

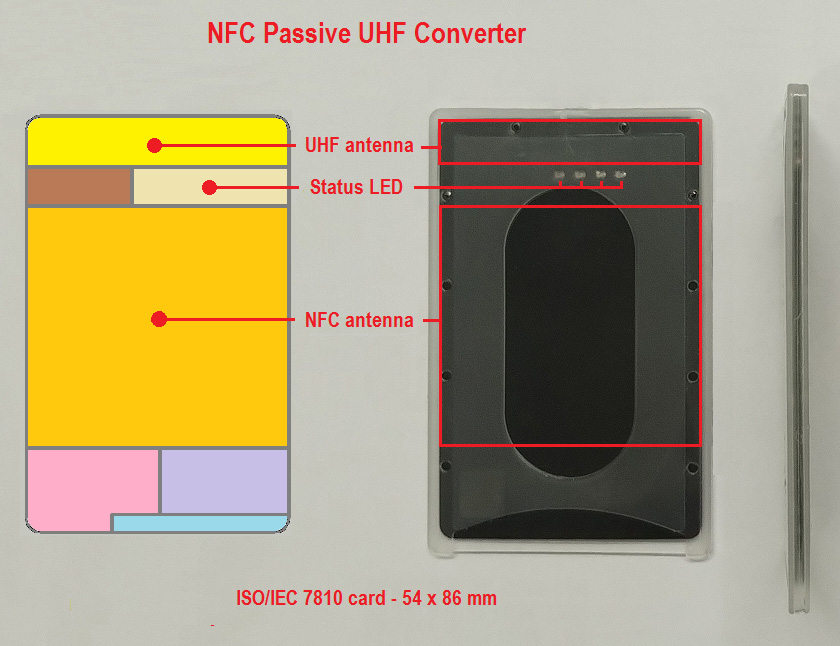

NFC Passive UHF Converter
- RFID UHF reader
- Interfaces: NFC
- Automatic reading of EPC
- Data format: HEX string or GS1 Digital Link (if the tag is SGTIN-96 encoded)
- Power supply: NFC
| MAN/MACHINE INTERFACES | 4 multicolor LED to report the operating status of the reader and the outcome of the RFID scan |
| INTERFACES | NFC with rectangular antenna 52 x 52 mm |
| RFID ENGINE | Air Interface Protocol: EPC Global UHF Class1 Gen2 / ISO 18000-63 Operating Frequency: 868.300 MHz RF Power: 3mW / 5dBm Integrated antenna with linear polarization |
| MAIN PROCESSOR | STMicroelectronics STM32L0 series |
| OS COMPATIBILITY | Android, iOS |
| POWER SUPPLY | NFC energy harvesting |
| WORKING TEMPERATURE | -20°C / 60°C |
| DIMENSIONS | Height 90mm, Width 58mm, Depth 3.5mm |
| WEIGHT | 16g |
| PROTECTION DEGREE | IP54 |

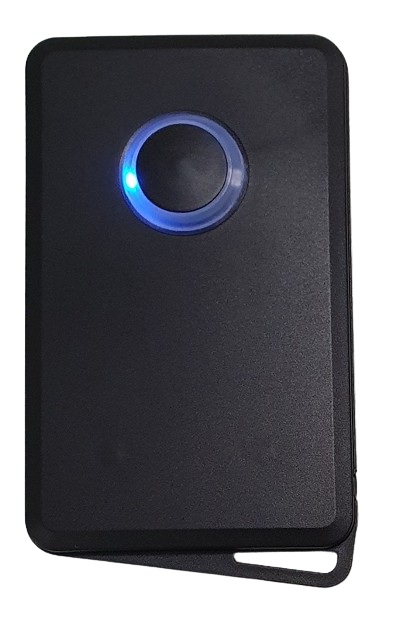

UHF Scanner RE40 – keyboard emulation BLE profile

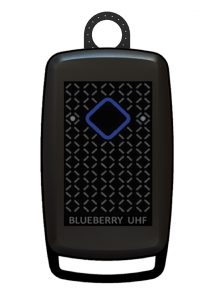

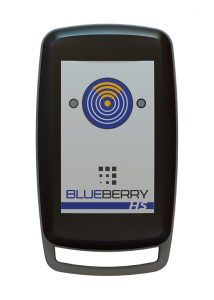

Replaces BLUEBERRY HS UHF
- RFID UHF reader and writer
- Interfaces: Bluetooth 5.1, USB
- Bluetooth profiles: keyboard emulation and serial emulation
- Automatic reading of EPC and/or TID
- Data format: HEX, ASCII or SGTIN-96 string with optional prefix and suffix
| MAN/MACHINE INTERFACES | 1 button for the RFID scan activation and for switch the device on/off 1 RGB multicolor LED (right one), 1 multitone beeper, 1 haptic actuator (vibration), to report the outcome of the RFID scan 1 RGB multicolor LED (left one) to report the operating status of the reader |
| INTERFACES | Bluetooth 5.1 radio, USB Type C connector, 3.5mm jack connector |

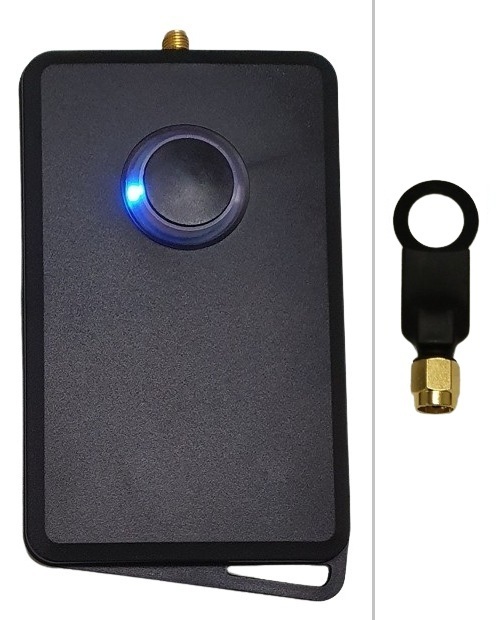

| RFID ENGINE | ZEBRA RE40 RFID UHF module Air Interface Protocol: EPC Global UHF Class1 Gen2 / ISO 18000-63 Operating Frequency: 865- 928 MHz band for worldwide support Regulatory and Compliance: EMI/RFI EN 55032:2012 / AC:2013 (Class B) EN 5032:2015 / AC:2016 (ClassB) EN 55024:2010 EN 5024:2010 / A1:2015 EN 55035:2017 47 CFR Part 15, Subpart B, Class B RF Power: max 500mW / 27dBm worldwide, max 250mW / 24dBm Japan Integrated antenna with linear polarization (or external antenna via SMA connector option available) |
| MAIN PROCESSOR | Nordic Semiconductor nRF52833 |
| OS COMPATIBILITY | Android, iOS, Windows, macOS, Linux |
| POWER SUPPLY | Integrated Li-Poly Battery 3.7V 1.2Ah, external 5Vdc from USB Type C connector |
| WORKING TEMPERATURE | -20°C / 60°C |
| DIMENSIONS | Height 116mm, Width 72mm, Depth 13mm |
| WEIGHT | 93g |
| PROTECTION DEGREE | IP54 (IP65 with accessories) |
UHF Scanner RE40 – serial emulation BLE profile

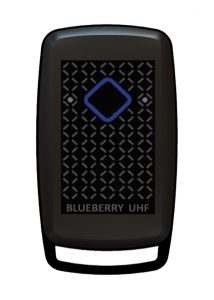

Replaces BLUEBERRY LE UHF
- RFID UHF reader and writer
- Interfaces: Bluetooth 5.1, USB
- Bluetooth profiles: keyboard emulation and serial emulation
- Automatic reading of EPC and/or TID
- Data format: HEX, ASCII or SGTIN-96 string with optional prefix and suffix
| MAN/MACHINE INTERFACES | 1 button for the RFID scan activation and for switch the device on/off 1 RGB multicolor LED (right one), 1 multitone beeper, 1 haptic actuator (vibration), to report the outcome of the RFID scan 1 RGB multicolor LED (left one) to report the operating status of the reader |
| INTERFACES | Bluetooth 5.1 radio, USB Type C connector, 3.5mm jack connector |

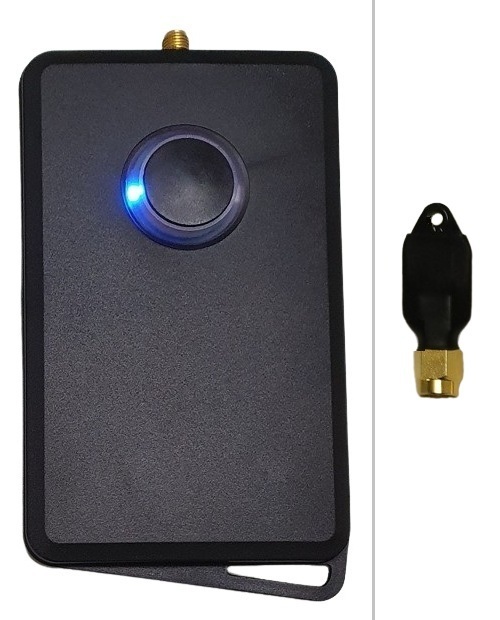

| RFID ENGINE | ZEBRA RE40 RFID UHF module Air Interface Protocol: EPC Global UHF Class1 Gen2 / ISO 18000-63 Operating Frequency: 865- 928 MHz band for worldwide support Regulatory and Compliance: EMI/RFI EN 55032:2012 / AC:2013 (Class B) EN 5032:2015 / AC:2016 (ClassB) EN 55024:2010 EN 5024:2010 / A1:2015 EN 55035:2017 47 CFR Part 15, Subpart B, Class B RF Power: max 500mW / 27dBm worldwide, max 250mW / 24dBm Japan Integrated antenna with linear polarization (or external antenna via SMA connector option available) |
| MAIN PROCESSOR | Nordic Semiconductor nRF52833 |
| OS COMPATIBILITY | Android, iOS, Windows, macOS, Linux |
| POWER SUPPLY | Integrated Li-Poly Battery 3.7V 1.2Ah, external 5Vdc from USB Type C connector |
| WORKING TEMPERATURE | -20°C / 60°C |
| DIMENSIONS | Height 116mm, Width 72mm, Depth 13mm |
| WEIGHT | 93g |
| PROTECTION DEGREE | IP54 (IP65 with accessories) |
UHF Scanner RE40 – serial emulation BLE profile

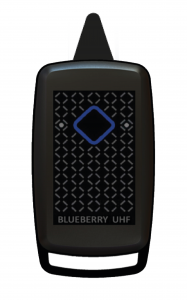

Replaces BLUEBERRY iS UHF
- RFID UHF reader and writer
- Interfaces: Bluetooth 5.1, USB
- Bluetooth profiles: keyboard emulation and serial emulation
- Automatic reading of EPC and/or TID
- Data format: HEX, ASCII or SGTIN-96 string with optional prefix and suffix
| MAN/MACHINE INTERFACES | 1 button for the RFID scan activation and for switch the device on/off 1 RGB multicolor LED (right one), 1 multitone beeper, 1 haptic actuator (vibration), to report the outcome of the RFID scan 1 RGB multicolor LED (left one) to report the operating status of the reader |
| INTERFACES | Bluetooth 5.1 radio, USB Type C connector, 3.5mm jack connector |
| RFID ENGINE | ZEBRA RE40 RFID UHF module Air Interface Protocol: EPC Global UHF Class1 Gen2 / ISO 18000-63 Operating Frequency: 865- 928 MHz band for worldwide support Regulatory and Compliance: EMI/RFI EN 55032:2012 / AC:2013 (Class B) EN 5032:2015 / AC:2016 (ClassB) EN 55024:2010 EN 5024:2010 / A1:2015 EN 55035:2017 47 CFR Part 15, Subpart B, Class B RF Power: max 500mW / 27dBm worldwide, max 250mW / 24dBm Japan Integrated antenna with linear polarization (or external antenna via SMA connector option available) |
| MAIN PROCESSOR | Nordic Semiconductor nRF52833 |
| OS COMPATIBILITY | Android, iOS, Windows, macOS, Linux |
| POWER SUPPLY | Integrated Li-Poly Battery 3.7V 1.2Ah, external 5Vdc from USB Type C connector |
| WORKING TEMPERATURE | -20°C / 60°C |
| DIMENSIONS | Height 116mm, Width 72mm, Depth 13mm |
| WEIGHT | 93g |
| PROTECTION DEGREE | IP54 (IP65 with accessories) |
