Download datasheet

Protocol introduction

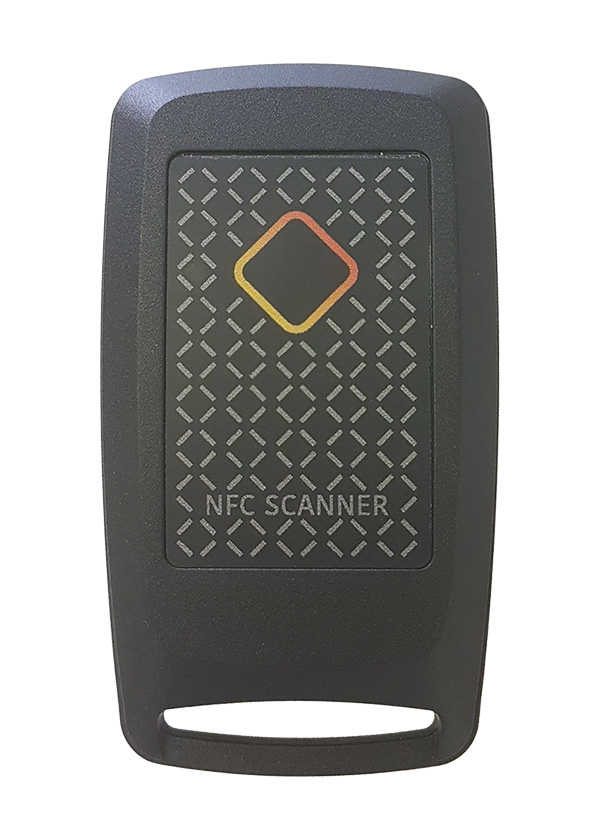

NFC SCANNER – keyboard emulation BLE profile

RFID UHF reader and writer
Interfaces: Bluetooth 5.1, USB
Bluetooth profiles: keyboard emulation and serial emulation
Automatic reading of UID, UID + MEMORY (up 512 bit) or other combinations including NDEF URI Record and NDEF Text Record
Manage all ISO 15693 commands (mandatory, optional, custom), ISO 14443A/B, NFC Type-2 Tag, NFC Type-4 Tag, NFC Type-5 Tag, ST25TB Tag
Read/Write up to 2 Mbit tag memory
Output ASCII / HEX with prefix and suffix
Battery life up to 15000 readings

View technical features

Download datasheet

Protocol introduction

RFID UHF reader and writer
Interfaces: Bluetooth 5.1, USB
Bluetooth profiles: keyboard emulation and serial emulation
Automatic reading of UID, UID + MEMORY (up 512 bit) or other combinations including NDEF URI Record and NDEF Text Record
Manage all ISO 15693 commands (mandatory, optional, custom), ISO 14443A/B, NFC Type-2 Tag, NFC Type-4 Tag, NFC Type-5 Tag, ST25TB Tag
Read/Write up to 2 Mbit tag memory
Output ASCII / HEX with prefix and suffix
Battery life up to 15000 readings
Zhaga Book25 certified

View technical features

Download datasheet

Protocol introduction

RFID UHF reader and writer
Interfaces: Bluetooth 5.1, USB
Bluetooth profiles: keyboard emulation and serial emulation
Automatic reading of UID, UID + MEMORY (up 512 bit) or other combinations including NDEF URI Record and NDEF Text Record
Manage all ISO 15693 commands (mandatory, optional, custom), ISO 14443A/B, NFC Type-2 Tag, NFC Type-4 Tag, NFC Type-5 Tag, ST25TB Tag
Read/Write up to 2 Mbit tag memory
Output ASCII / HEX with prefix and suffix
Battery life up to 15000 readings

View technical features

BLUEBERRY HF MS15

RFID reader and writer
USB interface – Bluetooth® 2.1+ EDR (HS) or Bluetooth® Low Energy 4.1 (LE)
Automatic reading of UID, UID + MEMORY (up 512 bit) or other combinations including NDEF URI Record and NDEF Text Record
Manage all ISO 15693 commands (mandatory, optional, custom), ISO 14443A/B, NFC Type-2 Tag, NFC Type-4 Tag, NFC Type-5 Tag, ST25TB Tag
Read/Write up to 2 Mbit tag memory
Output ASCII / HEX with prefix and suffix
Battery life up to 15000 readings
Ring of the loop antenna is 14 mm and it’s suitable for small or micro tag (such as Murata Magicstrap®) embedded or molded on plastic
Antenna shape has the viewfinder function
Max reading distance is 10 mm

View technical features

BLUEBERRY HF MS9

RFID reader and writer
USB interface – Bluetooth® 2.1+ EDR (HS) or Bluetooth® Low Energy 4.1 (LE)
Automatic reading of UID, UID + MEMORY (up 512 bit) or other combinations including NDEF URI Record and NDEF Text Record
Manage all ISO 15693 commands (mandatory, optional, custom), ISO 14443A/B, NFC Type-2 Tag, NFC Type-4 Tag, NFC Type-5 Tag, ST25TB Tag
Read/Write up to 2 Mbit tag memory
Output ASCII / HEX with prefix and suffix
Battery life up to 15000 readings
Ring of the loop antenna is 8 mm and it’s suitable for small or micro tag (such as Murata Magicstrap®) embedded on metal
Antenna shape has the viewfinder function
Max reading distance is 5 mm

View technical features

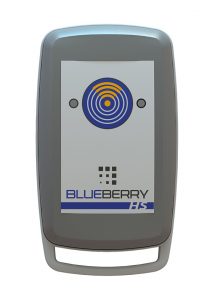

BB HS HF MS9

MAN/MACHINE INTERFACES	1 function key for RFID read activation, Multitone Beeper, 2 LED for device operation signaling
INTERNAL DEVICES	Frequency: 13.56 MHz
	Channel occupancy in accordance with: ETSI EN 302 330-2 V1.5.1, ETSI EN 300 328 V1.8.1 FCC part 15
	Power: 200 mW
	Standard: ISO 15693, ISO 14443A/B, NFC Type-2 Tag, NFC Type-4 Tag, NFC Type-5 Tag, ST25TB Tag
	Reading distance: 5 mm
	Ring of the loop antenna is 8 mm
INTERFACES	Micro USB type B
INTERFACES	Bluetooth® Class 2 V2.1 + EDR
OS COMPATIBILITY	Bluetooth® SPP Profile: Android, RIM, Windows Mobile/Phone, Windows, macOS, Linux
OS COMPATIBILITY	Bluetooth® HID Profile: iOS, Android, RIM, Windows Mobile, Windows, macOS, Linux
PROCESSOR	Texas Instruments MSP430 (16 bit RISC a 16MHz)
POWER SUPPLY	USB powered: 230mA peak @ 5Vdc (RF active full power), 30mA @ 5Vdc (idle mode)
POWER SUPPLY	Battery powered: Li-Poly Battery 3.7 Vdc 300mAh, rechargeable via micro USB, battery life 15000 reading, 24 h in idle mode
WORKING TEMPERATURE	-20°C / 60°C
DIMENSIONS	Height 6.8 cm – Width 4.2 cm – Depth 1.8 cm
WEIGHT	30 g
PROTECTION DEGREE	IP54

BB LE HF MS15

MAN/MACHINE INTERFACES	1 function key for RFID read activation, Multitone Beeper, 2 LED for device operation signaling
INTERNAL DEVICES	Frequency: 13.56 MHz
	Power: 200 mW
	Standard: ISO 15693, ISO 14443-A (only reading)
	Reading distance: 10 mm
	Ring of the loop antenna is 14 mm
INTERFACES	Micro USB type B
INTERFACES	Bluetooth® Low Energy
OS COMPATIBILITY	iOS, Android, RIM, Windows Mobile/Phone, Windows, masOS, Linux
PROCESSOR	Texas Instruments MSP430 (16 bit RISC a 16MHz)
POWER SUPPLY	USB powered: 380mA peak @ 5Vdc (RF active full power), 30mA @ 5Vdc (idle mode)
POWER SUPPLY	Battery powered: Li-Poly Battery 3.7 Vdc 300mAh, rechargeable via micro USB, battery life 15000 reading, 14 h in idle mode
WORKING TEMPERATURE	-20°C / 60°C
DIMENSIONS	Height 7.7 cm – Width 4.3 cm – Depth 1.7 cm
WEIGHT	30 g
PROTECTION DEGREE	IP54

BB LE HF MS9

MAN/MACHINE INTERFACES	1 function key for RFID read activation, Multitone Beeper, 2 LED for device operation signaling
INTERNAL DEVICES	Frequency: 13.56 MHz
	Power: 200 mW
	Standard: ISO 15693, ISO 14443-A (only reading)
	Reading distance: 5 mm
	Ring of the loop antenna is 8 mm
INTERFACES	Micro USB type B
INTERFACES	Bluetooth® Low Energy
OS COMPATIBILITY	iOS, Android, RIM, Windows Mobile/Phone, Windows, masOS, Linux
PROCESSOR	Texas Instruments MSP430 (16 bit RISC a 16MHz)
POWER SUPPLY	USB powered: 380mA peak @ 5Vdc (RF active full power), 30mA @ 5Vdc (idle mode)
POWER SUPPLY	Battery powered: Li-Poly Battery 3.7 Vdc 300mAh, rechargeable via micro USB, battery life 15000 reading, 14 h in idle mode
WORKING TEMPERATURE	-20°C / 60°C
DIMENSIONS	Height 7.7 cm – Width 4.3 cm – Depth 1.7 cm
WEIGHT	30 g
PROTECTION DEGREE	IP54
