IceKey HF
- RFID reader and writer
- Manage all ISO 15693 commands (mandatory, optional, custom), ISO 14443-A (only ID reading)
- USB interface
- Embedded antenna
- 3 LEDs + multitone beeper
- Microscopic suction caps
| MAN/MACHINE INTERFACES | 3 LEDs for device operation signaling, Multitone Beeper |
| INTERNAL DEVICES | Frequency: 13.56 MHz |
| Power: 100 or 200 mW switchable | |
| Standard: ISO 15693, ISO 14443-A (only ID reading) | |
| Reading distance: up to 10 cm | |
| Embedded antenna | |
| INTERFACES | USB male type A |
| OS COMPATIBILITY | Windows, macOS, Linux |
| POWER SUPPLY | USB powered, 220mA peak @ 5Vdc (RF active full power), 35mA @ 5Vdc (idle mode) |
| WORKING TEMPERATURE | -20°C / 70°C |
| DIMENSIONS (USB connector not included) | Height 6.8 cm – Width 5.4 cm – Depth 0.7 cm |
| WEIGHT | 22.5 g |
| PROTECTION DEGREE | IP54 |

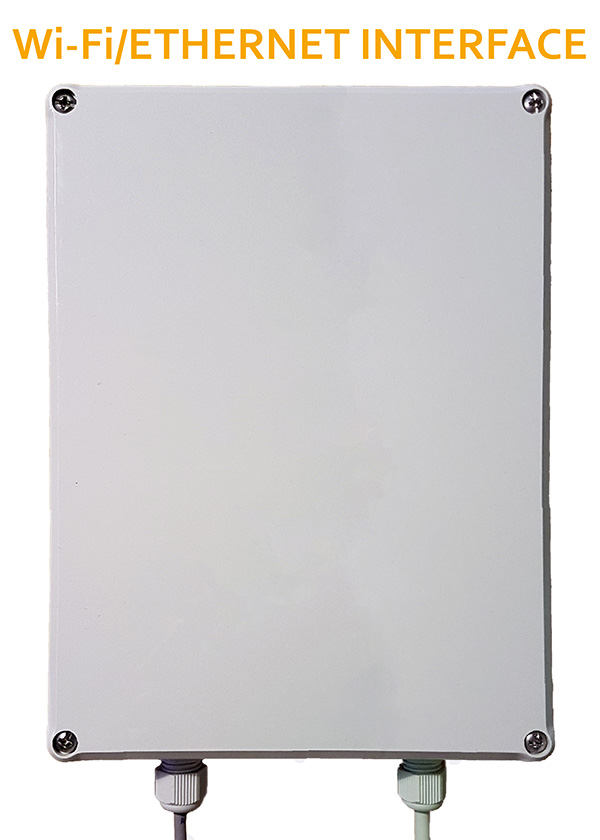

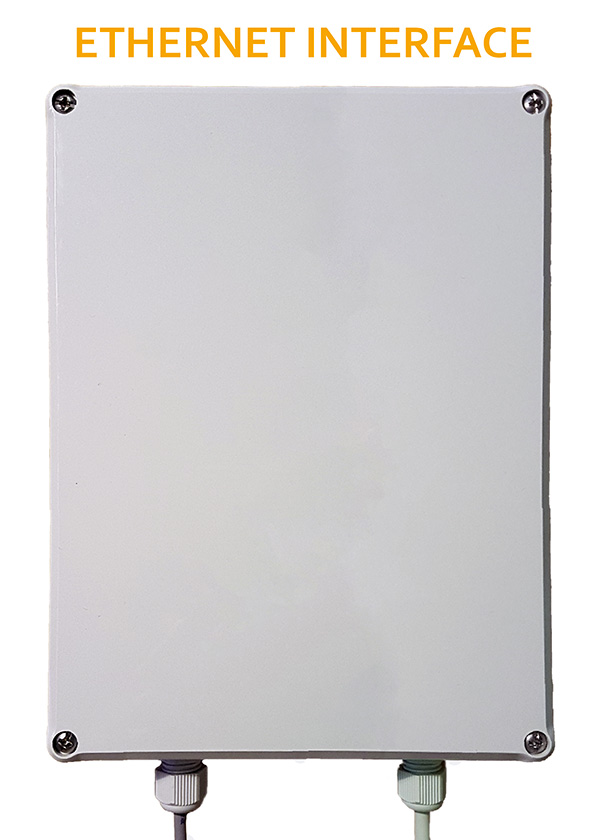

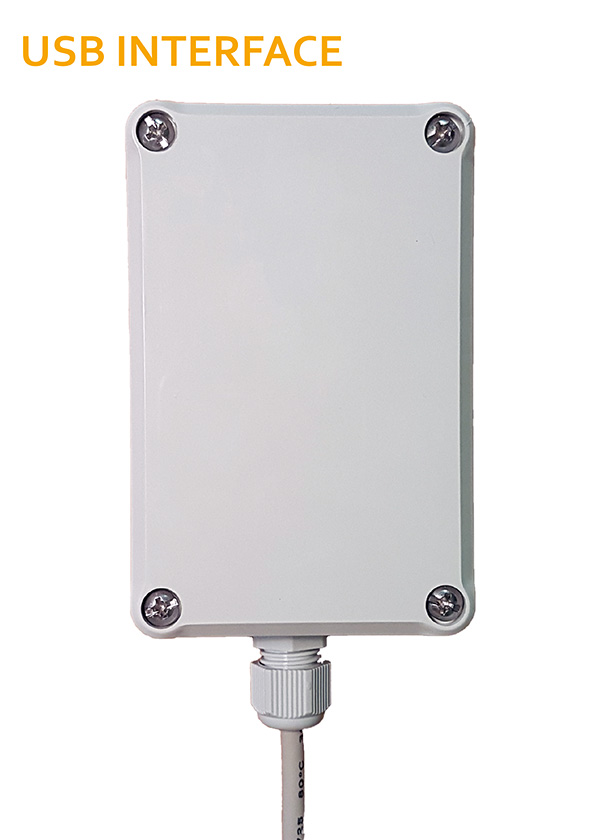

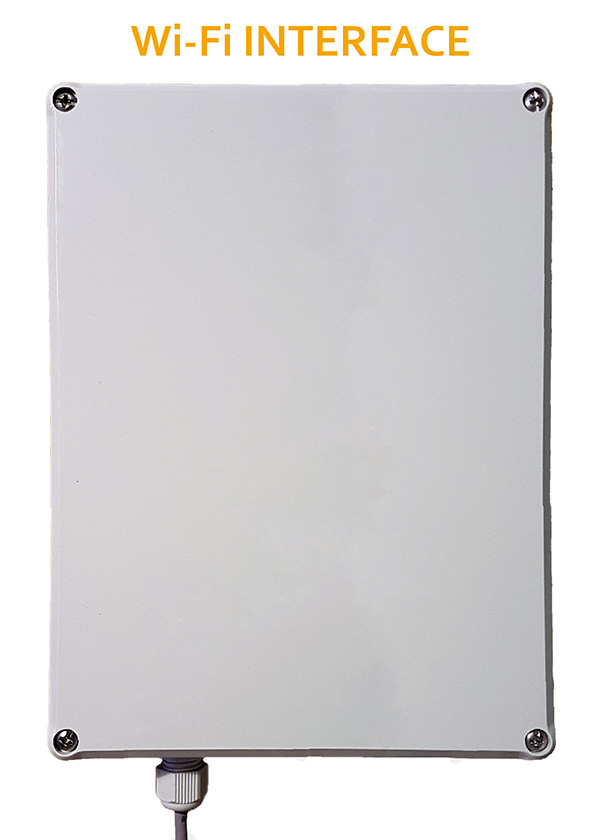

IceKey HF IP65 – Industrial
- Industrial RFID reader and writer
- Manage all ISO 15693 commands (mandatory, optional, custom), ISO 14443A/B, NFC Type-2 Tag, NFC Type-4 Tag, NFC Type-5 Tag, ST25TB Tag
- USB or Wi-Fi or Ethernet or Wi-Fi/Ethernet interface, Digital I/O (optional)
- Embedded antenna
- 3 or 5 LEDs + multitone beeper (optional)
| MAN/MACHINE INTERFACES | USB Interface: 3 LEDs for device operation signaling (optional), Multitone Beeper
Wi-Fi or Ethernet or Wi-Fi/Ethernet Interface: 5 LEDs for device operation signaling (optional), Multitone Beeper |
| INTERNAL DEVICES | Frequency: 13.56 MHz |
| Power: 100 or 200 mW switchable | |
| Standard: ISO 15693, ISO 14443A/B, NFC Type-2 Tag, NFC Type-4 Tag, NFC Type-5 Tag, ST25TB Tag | |
| Reading distance:
USB Interface: up to 10 cm Wi-Fi or Ethernet or Wi-Fi/Ethernet Interface: up to 25 cm |
|
| Embedded antenna | |
| INTERFACES | USB cable terminated with type A male or Wi-Fi or Ethernet or Wi-Fi/Ethernet, on/off 2 inputs and 2 outputs 12V/24V with optocoupler (optional) |
| OS COMPATIBILITY | Windows, macOS, Linux |
| POWER SUPPLY | USB Interface: USB cable (2 m), 220mA peak @ 5Vdc (RF active full power), 35mA @ 5Vdc (idle mode)
Wi-Fi or Ethernet or Wi-Fi/Ethernet Interface: Power supply 12Vdc (from 7V to 36V), 90mA peak (RF active full power) 14mA (idle mode) |
| WORKING TEMPERATURE | -20°C / 70°C |
| DIMENSIONS | USB Interface: 9.8 cm – Width 6.4 cm – Depth 3.8 cm
Wi-Fi or Ethernet or Wi-Fi/Ethernet Interface: Height 20 cm – Width 15 cm – Depth 3.7 cm |
| WEIGHT | USB Interface: 92 g
Wi-Fi or Ethernet or Wi-Fi/Ethernet Interface: 273 g |
| PROTECTION DEGREE | IP65 |
BlueRFID HF
- RFID reader and writer
- Manage all ISO 15693 commands (mandatory, optional, custom), ISO 14443-A (only ID reading)
- TTL serial or USB interfaces
- Embedded antenna
- 3 LEDs + multitone beeper
| MAN/MACHINE INTERFACES | 3 LEDs for device operation signaling, Multitone Beeper |
| INTERNAL DEVICES | Frequency: 13.56 MHz |
| Power: 100 or 200 mW switchable | |
| Standard: ISO15693, ISO 14443-A (only ID reading) | |
| Reading distance: up to 10 cm | |
| Embedded antenna | |
| INTERFACES | Two-wire (TX and RX) asynchronous 3.3Vdc TTL serial or USB type A male |
| OS COMPATIBILITY | Windows, macOS, Linux |
| I/O SIGNAL | 1 digital input (optional with opendrain) |
| POWER SUPPLY | USB powered, 220mA peak @ 5Vdc (RF active full power) 35mA @ 5Vdc (idle mode) |
| WORKING TEMPERATURE | -20°C / 70°C |
| DIMENSIONS | Height 5 cm – Width 5.4 cm |
| WEIGHT | 20 g |
