BLUEBERRY HS UHF

  • RFID reader and writer
  • EPC Class1 Gen2
  • USB interface – Bluetooth® 2.1+ EDR
  • HID (keyboard emulation) and SPP (bidirectional serial) profiles
  • Automatic reading of EPC or EPC + TID or other combinations
  • Output ASCII / HEX with prefix and suffix
  • Battery life up to 10000 readings
View technical features
MAN/MACHINE INTERFACES 1 function key for RFID read activation, Multitone Beeper, 2 LED for device operation signaling
INTERNAL DEVICES RFID reader ETSI version:
Frequency: 865.6 – 867.6 MHz
Number of channels: single or 4 hopping channels
Channel occupancy in accordance with: ETSI EN 302 208-2 V1.4.1 and ETSI EN 300 328 V1.8.1
Power: configurable up to 50 mW
Standard: EPC Class1 Gen2
Reading distance: up to 30 cm with Far Field Tag, 2 cm with Near Field Tag
RFID reader FCC version:
Frequency: 902.55 – 927.7 MHz
Number of channels: 50 hopping channels (compliant to FCC part 15)
Channel occupancy in accordance with: FCC part 15
Power: configurable up to 50 mW
Standard: EPC Class1 Gen2
Reading distance: up to 30 cm with Far Field Tag, 2 cm with Near Field Tag
Embedded antenna
INTERFACES Micro USB type B
Bluetooth® Class 2 V2.1+ EDR
OS COMPATIBILITY Bluetooth® SPP Profile: Android, RIM, Windows Mobile/Phone, Windows, macOS, Linux
Bluetooth® HID Profile: iOS, Android, RIM, Windows Mobile, Windows, macOS, Linux
PROCESSOR Texas Instruments MSP430 (16 bit RISC a 16MHz)
POWER SUPPLY USB powered: 380mA peak @ 5Vdc (RF active full power), 30mA @ 5Vdc (idle mode)
Battery powered: Li-Poly Battery 3.7 Vdc 300mAh, rechargeable via micro USB, battery life 10000 reading, 14 h in idle mode
WORKING TEMPERATURE -20°C / 60°C
DIMENSIONS Height 6.8 cm – Width 4.2 cm – Depth 1.8 cm
WEIGHT 30 g
PROTECTION DEGREE IP54

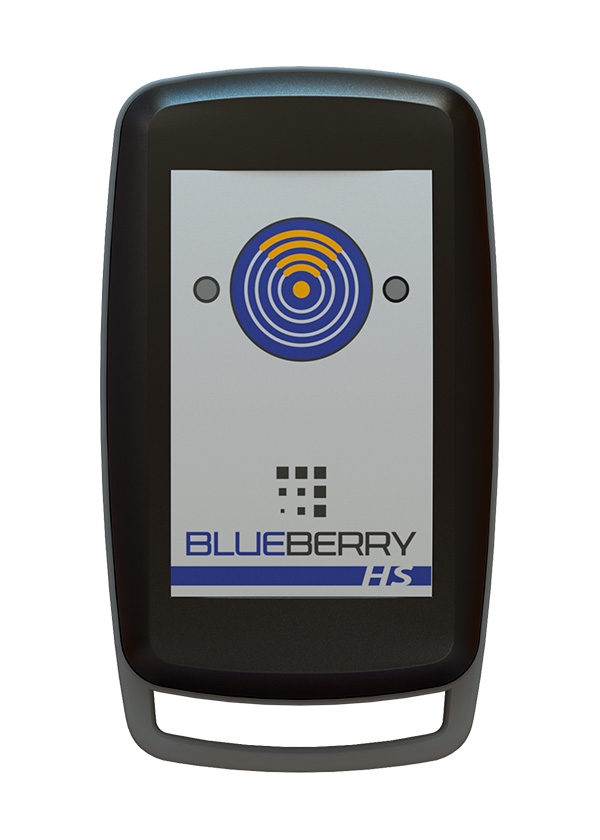

BlueBerry HS UHF is a mobile mini RFID reader, keychain shape, capable of reading UHF tags and transmitting the acquired data to any device equipped with a Bluetooth® radio interface.

The maximum reading distance is 30 cm for UHF far field tags and 2 cm for near field UHF tags.
The use of the RFID reader is easy and intuitive thanks to the presence of a single button, to activate the reading of the UHF tags (1), and an LED and a multi-tone beeper, to alert the operator of the reading.

BlueBerry HS UHF integrates Bluetooth® radio technology, in particular it uses HID and SPP profiles.

With the HID profile the data transmission takes place in keyboard emulation mode, mono-directional channel (2). This profile supports all major mobile devices, including those equipped with iOS and Android operating system, as well as the main desktop or portable devices, including those with Windows, Linux and Mac OS operating systems. Thanks to this profile, any application or program that accepts identification data entered from the keyboard can receive the same data transmitted by the BlueBerry HS UHF (3).

With the SPP profile, data transmission takes place in virtual serial mode, a two-way channel. A simple serial communication protocol, present on all TERTIUM Technology products, allows to manage all the RFID reader functions, in particular the ID scan and the reading / writing of the UHF tag memory. With this profile it is possible, during development, to integrate RFID technology in any application or program for mobile or desktop or portable devices (4).

BlueBerry HS UHF is battery powered. Charging carries out via a micro USB connector.

Through the same USB port it is possible to connect the BlueBerry HS HF to a PC, so that it can also be used as a normal RFID desktop reader. Data transmission on the USB interface takes place in virtual serial mode, a bidirectional channel (managed through the same serial communication protocol as the Bluetooth® SPP interface).
